National Enhance Technology Corp.

 Print this page

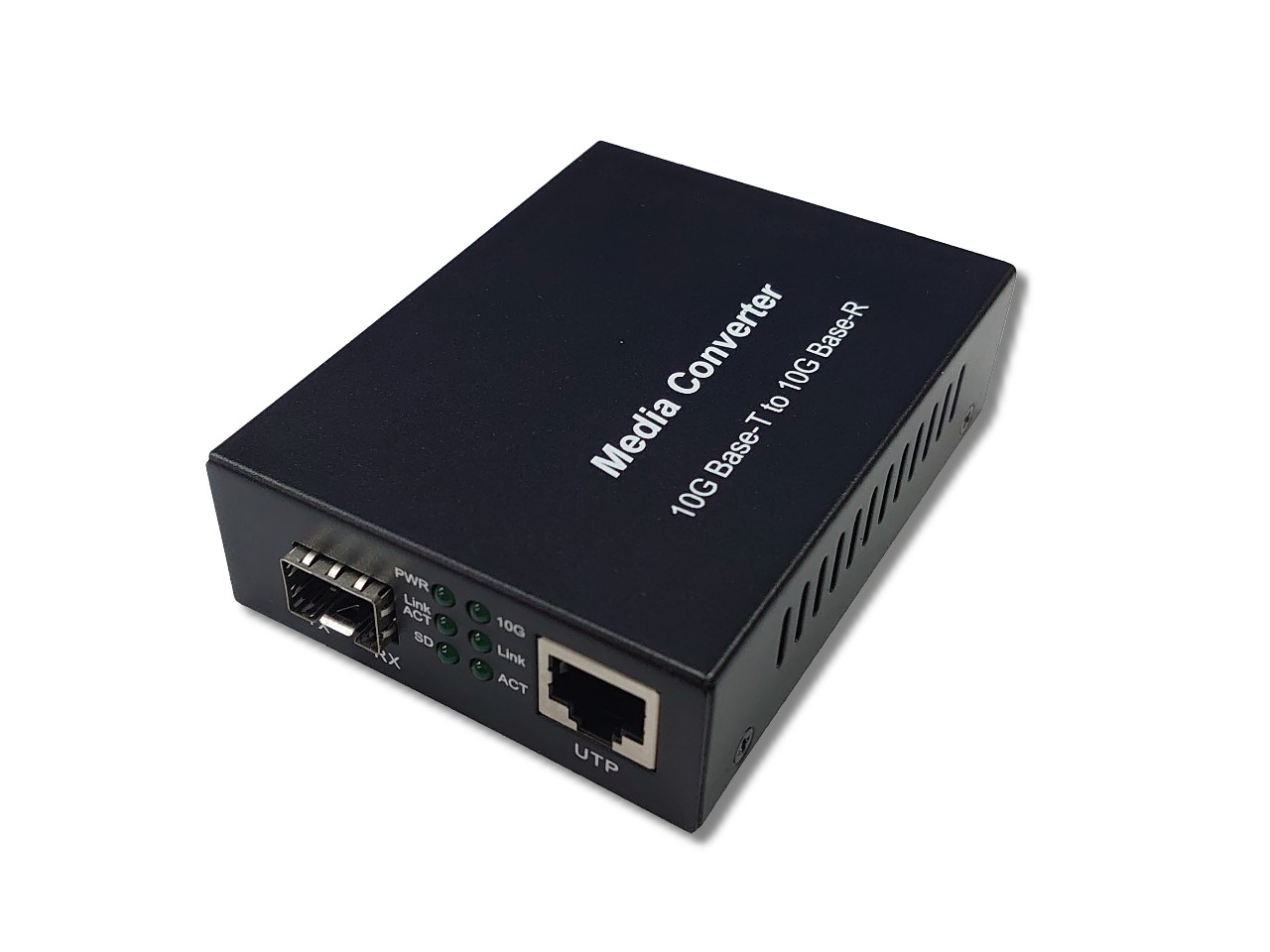

NM-2100G

10GBase-T over 10G SFP+ Media Converter
Ordering Information
NM-2100G 10GBase-T over 10G SFP+ Media Converter



  • OVERVIEW
  • FEATURES
  • SPECIFICATIONS
  • APPLICATIONS
  • DOWNLOAD



Product OVERVIEW

The NM-2100G is a high-performance 10G Media Converter designed for seamless network connection and media switching between 100M/1G/2.5G/5G/10GBase-T and an SFP+ slot. Equipped with a built-in 10G SerDes, it flawlessly supports 10G Single-Mode (SM) and Multi-Mode (MM) fiber modules. Please note that the SFP+ port operates exclusively in 10Gbps Full-Duplex mode. Powered by an external power supply, the NM-2100G delivers exceptional stability and carrier-grade reliability for demanding network environments



FEATURES
  •  RJ-45 port supports 100M/1G/2.5G/5G/10Gbase-T
  •  SFP+ slot supports 10GBase-X Serdes interface
  •  Forwarding Jambo fram up to 16kbytes
  •  Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
  •  All SFP ports support only 10Gbps and Full-Duplex modes
  •  Compact in size, easy installation
  •  Plug & Play
  •  Flexible application & installation
  •

* Specifications are subject to change without prior notice.



Specifications
Standard Conformance
 Standard:  IEEE802.3u / IEEE802.3ab
 IEEE802.3bz / IEEE802.3ae
 Regulatory Compliance:  FCC
 CE



 Hardware Specifications
 Physical Interface:  1 x RJ45
 1 x SFP slot
 1 x DC Power Jack
 UTP Cable:  Cat.6a or Cat.7 copper cable

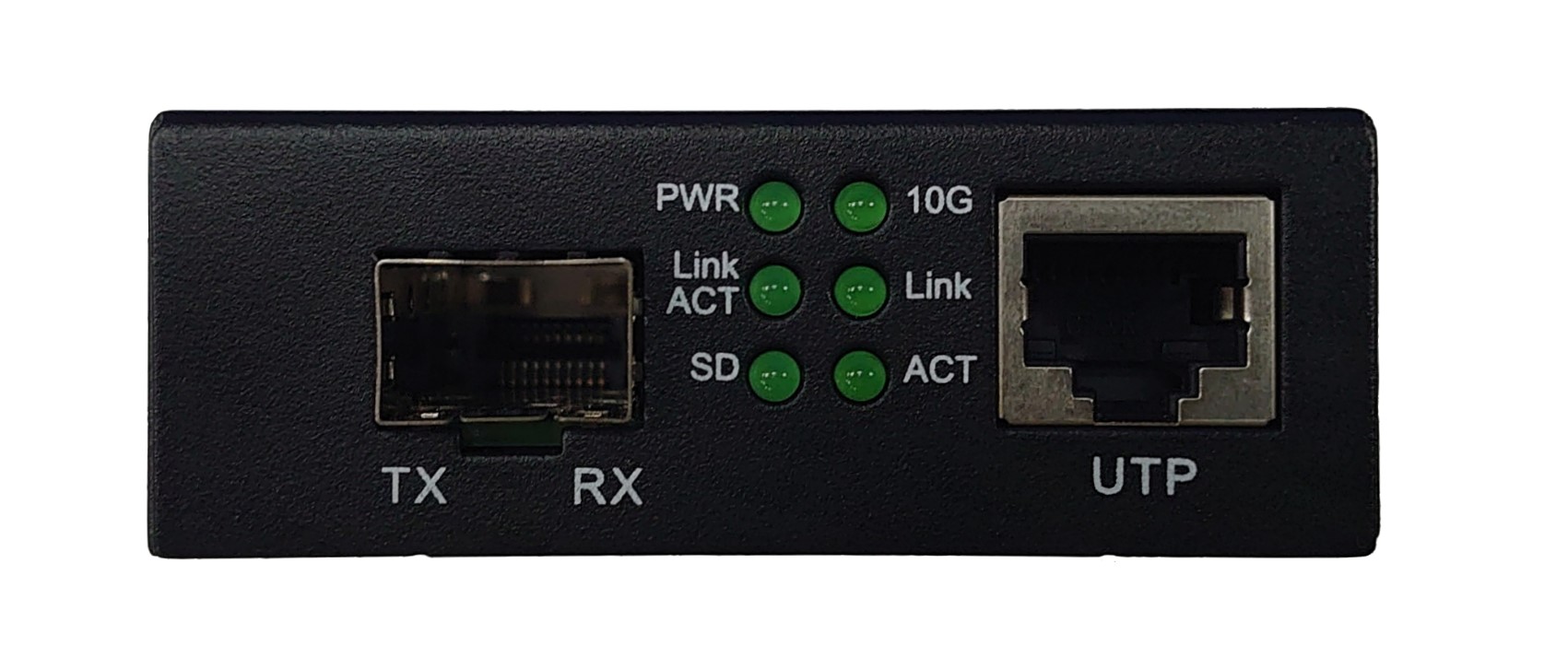

 LED indication:  RJ-45 port :10G, Link,Act
 SFP+ slot : link/ACT, SD
 PWR
 Data Rate:  RJ45 port: 100M/1G/2.5G/5G/10G
 SFP: 10G
 Jumbo Frame:  16K bytes
 Power Requirement:  5~12VDC/1A
 Operating Temperature:  0°C~ 50°C (32°F ~ 122°F)
 Humidity:  5 to 90% (non-condensing)
 Dimensions:  134 x 82 x 27 mm (5.28" x 3.23" x 1.06") （L*W*H）



* Specifications are subject to change without prior notice.

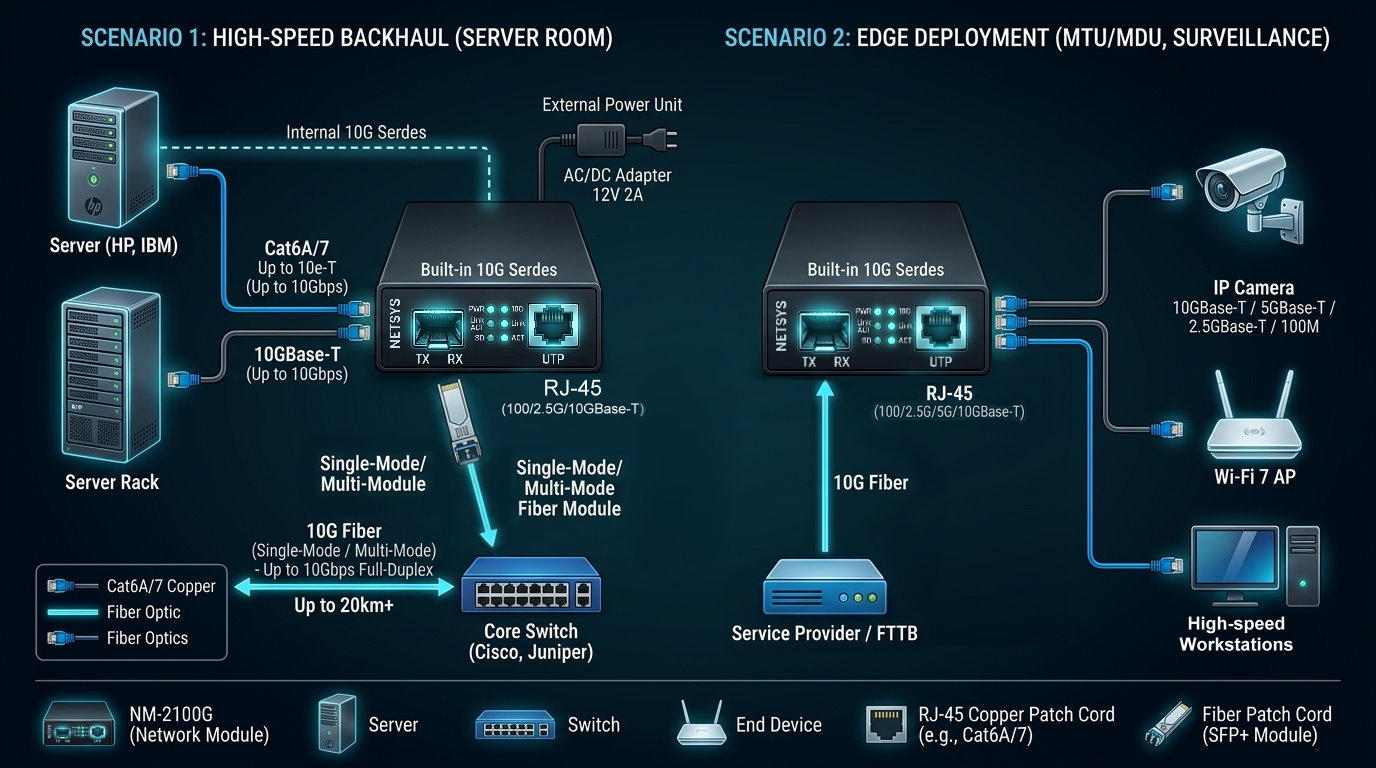

APPLICATIONS







DOWNLOAD
Release Date File Version Download
 June, 2026  Datasheet  N/A
 N/A  User's manual  N/A
